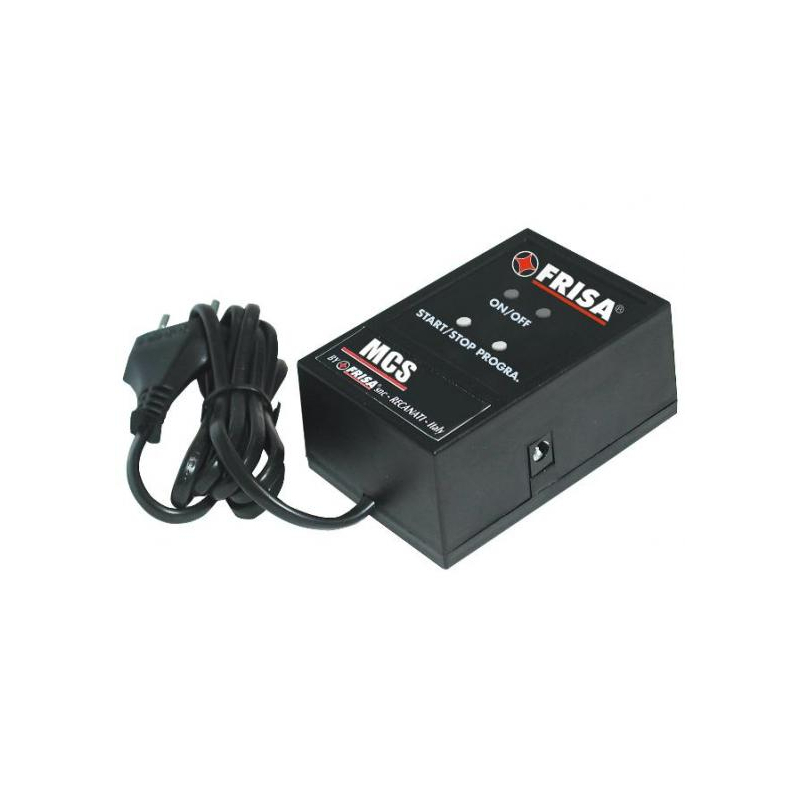

MCS Motor Control System
TheMCS (Motor Control System) is an electronic control unit designed to precisely and reliably automate mechanical movements within the nativity scene, such as the opening and closing of doors, windows, trapdoors, and other moving scenic elements.
The device controls a 12V DC motor (not included), managing its operation through dedicated software. During the programming phase, the outward movement is stored and subsequently reproduced in reverse during the return, allowing the motor to return precisely to its initial position. This feature makes it possible to create smooth, realistic, and perfectly repeatable movements.
The movement speed can be adjusted using a special trimmer, which reduces the output voltage and therefore the motor's RPM, adapting the animation to the needs of the nativity scene.
This version (different from the MCS/CC) is particularly suitable for contexts managed by control units or programmers. Once the movement has been programmed, the system performs it until the end of the cycle. The system then remains stopped, waiting for the new phase input. When the new phase begins, it detects the electrical pulse and reactivates a complete cycle.
The MCS is compatible with low-current motors (less than 60 mA), such as those identified in our catalog by the codes MCC and MECC (see also related products below).
Technical specifications
Power supply: 220V AC
Maximum current draw: 120 mA
Motor output: 12V DC – 2.5 mm connector
LED/Microswitch output: 2.7V DC – 2.1 mm connector
Included accessories
Cable with 2.5 mm connector for connecting the motor
Microswitch with cable and 2.1 mm connector
Note
The motor is not included in the package and must be purchased separately.
Difference between MCS and MCS/CC
MCS: The device performs the programmed cycle, then stops. It restarts only with a new electrical pulse. It is therefore perfect for contexts managed by control units or programmers.
MCS/CC (CONTINUOUS CYCLE): The device runs the programmed cycle continuously. Once the cycle is complete, it restarts automatically.
