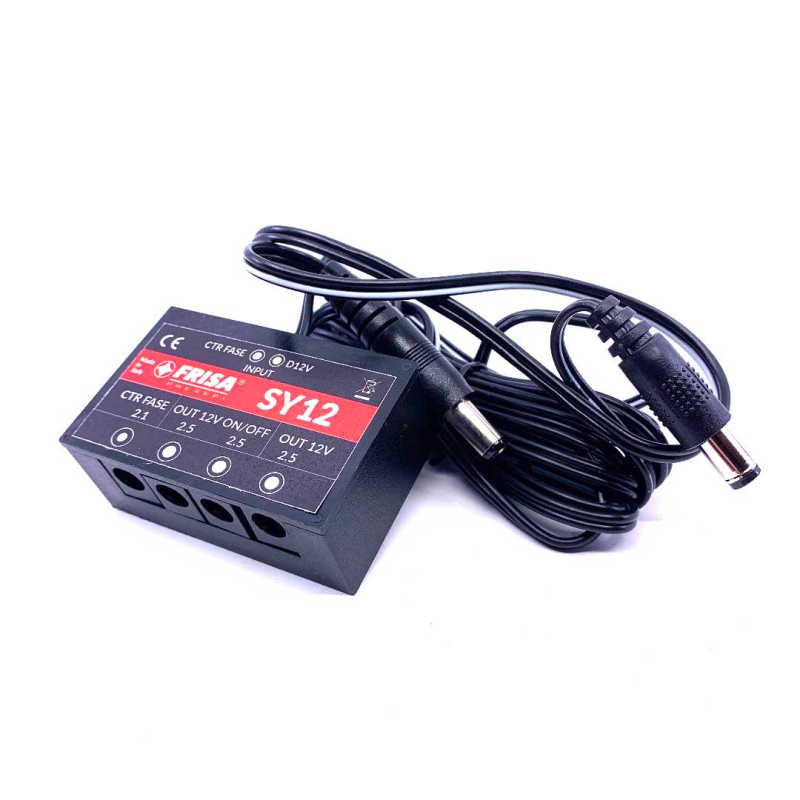

SY12 Frisa - 12V ON/OFF Synchronized Socket

SY12 Socket - 12V ON/OFF Synchronized Socket

It is a 12V DC socket that can be synchronized with any phase of LED control units. Synchronization is achieved by connecting the supplied cable to the phase with which synchronization is desired. Required for powering loads that require more current than that supplied by the DC socket in use.

Examples of use:
power supply for the thunder sound player (RSLT) in the LTA lightning/thunder context;
power supply for house lights in the Frial One context;
In any other context where there is a need for synchronized power increases in a phase.

SY12 must be powered with 12 volts direct current by connecting the 2.5 mm plug in parallel with the power supply of the control unit in use.
If the available power is not sufficient, the supplied power adapter must be replaced with one of higher power.

2.5 mm plug = Short cable (30 cm): to the 12V DC power supply
2.1 mm plug = Long cable (200 cm): to the controller phase in which the outlet must be activated (if the output is 2.5 mm, it will be necessary to use a PWM1, PWM2, or PWM3 power strip).

Technical specifications:

Power supply: 12V direct current
Maximum load: 30W
Female power connector: dia. 2.5 mm
Female synchronization connector: dia. 2.1 mm

Outputs:

Phase synchronization (input parallel): dia. 2.1 mm
12V DC OUT (input parallel): dia. 2.5 mm
2 x IN/OFF OUT: dia. 2.5 mm
