FrialMaxi BASIC Frisa - Adjustable LED Controller for Nativity Scenes - Frisa

White fade-ins, daytime, sunset, night;
Fading stars with twinkling;
House lights;
Steady blue light.

Adjustable cycle duration.

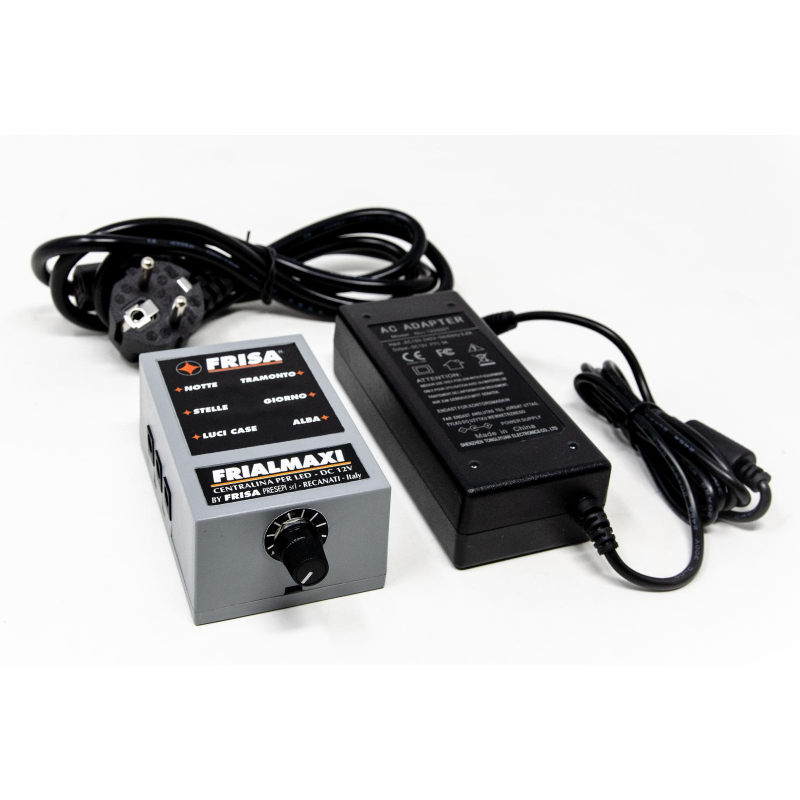

FRIALMAXI, in terms of power and performance, is positioned in the semi-professional product range. Each output can power up to 15 meters of LED strips or 12V LED spotlights over 36W (e.g., 5 of our L7W code lamps), corresponding to over 3,000 lumens. The lighting can be compared to that produced by incandescent lamps of over 300W.

It has six DC sockets, three of which feature crossfading to create the dawn, daytime, and sunset phases.
LED strips in suitable colors and LED accessories can be connected to them.
Two sockets are dedicated to nighttime. One features fading to connect accessories for nighttime effects (MICROFO or MAXIFO for stars; MICROQL or MICROSC for the moon and comet). The other nighttime socket controls the night lights (accessories such as LC8 for house lights).
The sixth socket remains on during all phases. A strip of blue LEDs can be connected here to create a spectacular lighting effect, useful in all phases. LEDs for fixed illumination of the Nativity scene can be connected in parallel with the LED strip.

The control unit is equipped with an external power supply.

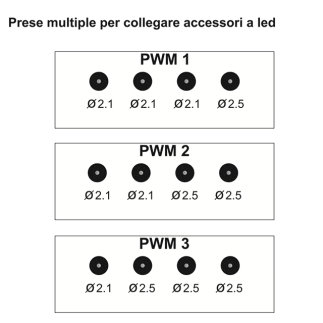

The output of each phase is equipped with a DC socket. One accessory can be connected to each socket. To connect multiple accessories to the same socket, multiple outlets are required, some of which are supplied.

For those who need synchronized 220V outlets, SYL is available (synchronized outlet with LED control).

For those wishing to synchronize audio with the cycle, SYM+RSCC is available.

PR26 is available for projecting slides.


TECHNICAL SPECIFICATIONS:

Power supply: 12V
Maximum current: 4A
12V outputs
Cycle with adjustable duration: 1 min - 10 min
DC output sockets: 2.5 mm diameter.

Supplied with the control unit: 4A power supply
N.B. LED strips, power strips, and accessories are NOT included with the control unit.

Dimensions: 90 x 60 x 45 cm with external power supply
