FrialPower Basic FRISA - LED Nativity Scene Controller - Frisa

This Version includes:

• FRIALPOWER control unit
• 12V - 2A power supply

N.B. LED strips, PWM sockets, and FRPW power strip are NOT INCLUDED in this version.



Fade effects for dawn, day, sunset, night;
Fading stars with twinkling;
House lights;
Fixed blue light.

Fixed cycle duration: 2'30"

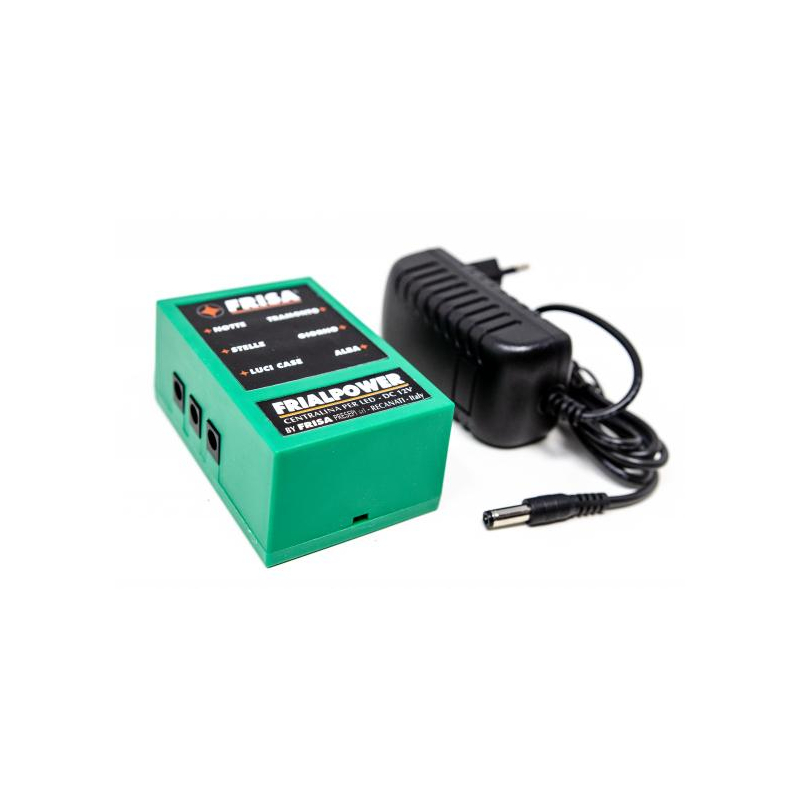

FRIALPOWER is an LED power control unit suitable for safely illuminating medium-sized Nativity scenes with outstanding results.
Strips with over 200 LEDs and various accessories can be connected to the various outputs, for a total power of 20W.

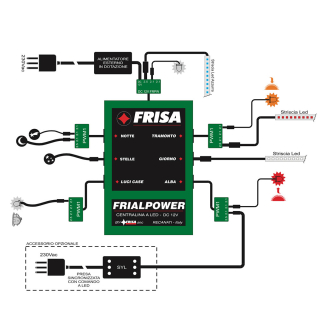

It features six DC sockets, three of which have cross-fading for creating the dawn, day, and sunset phases.
LED strips in appropriate colors and LED accessories can be connected to them.
Two sockets are dedicated to nighttime. One has fading for connecting accessories for nighttime effects (MICROFO or MAXIFO for stars; MICROQL or MICROSC for the moon and comet). The other nighttime socket controls the night lights (accessories such as LC8 for house lights).
The sixth socket remains on during all phases. A strip of blue LEDs can be connected here to create a spectacular lighting effect, useful in all phases. LEDs for fixed illumination of the Nativity scene can be connected in parallel with the LED strip.

The control unit is equipped with an external power supply.

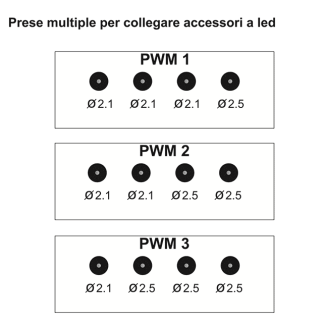

The output of each phase is equipped with a DC socket. One accessory can be connected to each socket. To connect multiple accessories to the same socket, multiple adapters are required, some of which are included.

For those who need synchronized 220V sockets, the following is available: SYL (synchronized socket with LED control).

For those who wish to synchronize audio with the cycle, the following is available: SYM+RSCC.

For projecting slides, the following is available: PR26.

TECHNICAL SPECIFICATIONS:

Power supply: 12V
Maximum current: 2A
12V outputs
Fixed-duration cycle: 2 min 30 sec
DC output sockets: 2.5 mm diameter.

Dimensions: 9 x 6 x 4.5 cm with external power supply
