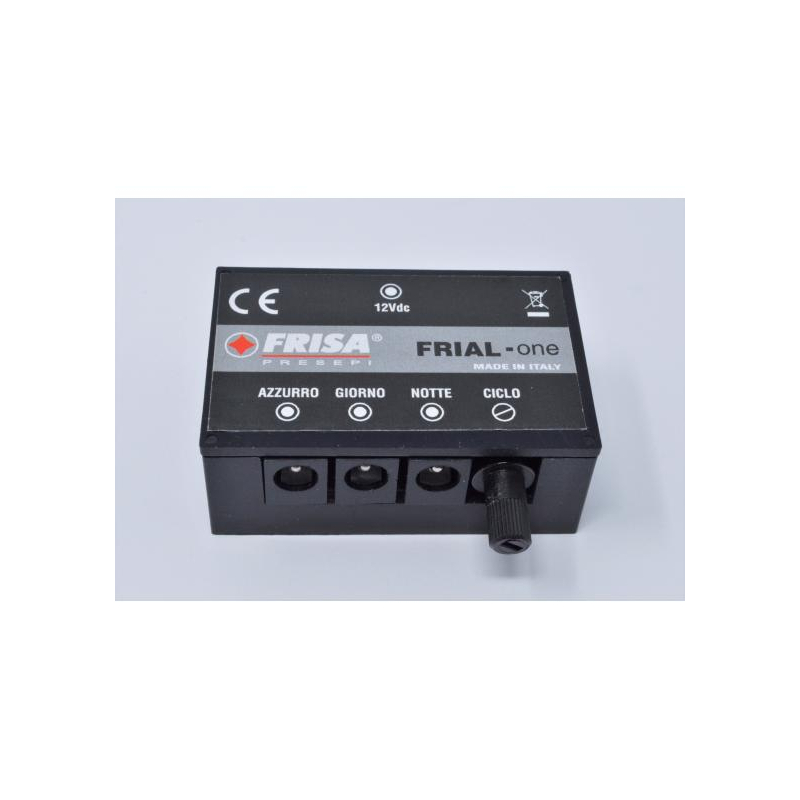

It is a very compact control unit with excellent performance and expansion capabilities.
In addition to the equipment included in the Basic version, the control unit also comes with an audio device featuring Christmas music and a double socket for connecting it. The audio device has a power output of approximately 400 mW, sufficient for home environments. The volume is adjustable.
It is a very compact control unit with excellent performance and expansion possibilities. We have enclosed the potential of a large control unit in 5 cm. LED strips can be connected up to a total power of 15 W.
The basic configuration cannot be expanded. However, accessories can be replaced with accessories of similar or equal power. It has one socket for connecting the power supply unit (included) and 3 output sockets for connecting strips and/or accessories.
Of these outputs, one is for steady light, dedicated to the "blue" band, which will always remain on, very useful both during the night phase and the day phase.
One output is dedicated to daytime fading, and the third to nighttime fading.
Cycle adjustment allows for a variable duration from 30 seconds up to 5 minutes.
FRIAL ONE is available in three versions:
BASIC
The control unit comes with a power supply, a 30-LED blue "PS" series LED strip (Code PSBL30), a 60-LED warm white "PS" series LED strip (Code PSBC60), and a fire LED—the essentials for illuminating the nativity scene.
MUSIC (the product you are currently viewing)
In addition to the items included with the Basic version, the control unit also comes with an audio device featuring Christmas music and a double socket for connecting it. The audio device has an output of approximately 400 mW, suitable for home environments. The volume is adjustable.
STAR
In addition to the items included with the Music version, the control unit also comes with 30 MICROFO fiber-optic stars and the corresponding double socket for connection.
Dimensions: 55x35x20 mm
For all versions, if the included equipment is not sufficient, it will be possible to connect additional strips and other accessories available in the catalog.
To connect additional strips or accessories, it will be necessary to obtain double sockets (PRL2.5 - PRL2.1) or multiple sockets (PWM1 - PWM2 - PWM3).
TECHNICAL SPECIFICATIONS
Power supply
12 V DC 1 A 2.5 mm socket
Fixed light blue output
12 V DC 1 A 2.5 mm socket
Day fade output
12 V DC 1 A 2.5 mm socket
Night fade output
12 V DC 200 mA 2.1 mm socket
Maximum load: 1 A
Cycle adjustment: from 30 seconds to 5 minutes
