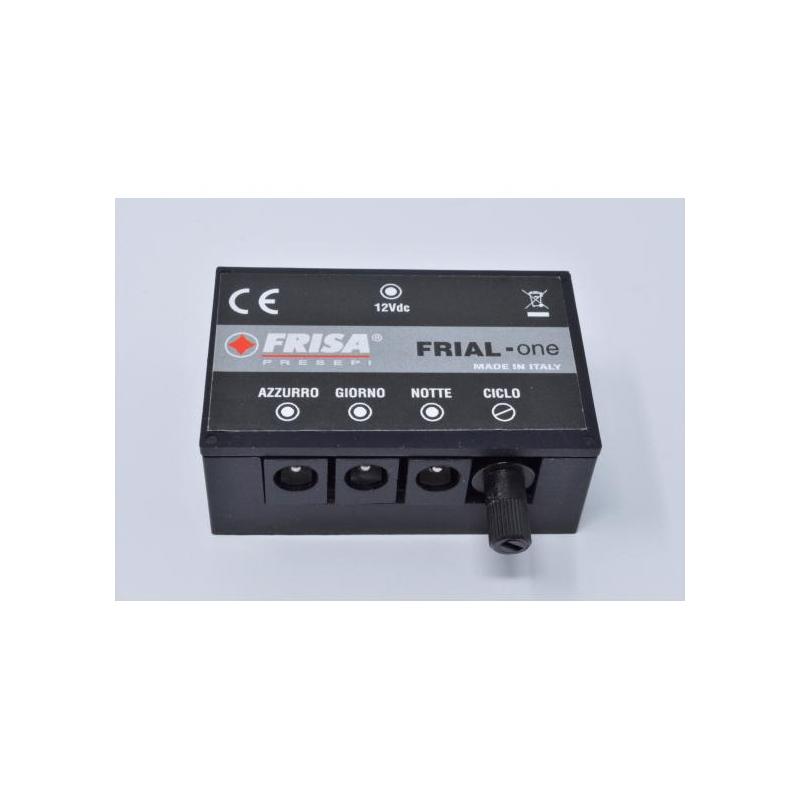

It is a very compact control unit with excellent performance and expansion possibilities.
The control unit comes with a power supply, a 30-LED blue "PS" series LED strip (Code PSBL30), a 60-LED warm white "PS" series LED strip (Code PSBC60), and a fire LED—everything needed to illuminate the nativity scene.
It is a very compact control unit, offering excellent performance and expansion possibilities. We have enclosed the potential of a large control unit in just 5 cm. LED strips can be connected up to a total power of 15 W.
The basic configuration cannot be expanded. However, accessories can be replaced with accessories of similar or equal power. It has one socket for connecting the power supply (included) and 3 output sockets for connecting strips and/or accessories.
Of these outputs, one provides constant light, dedicated to the "blue" strip, which will always remain on, very useful both during the night phase and the day phase.
One output is dedicated to the daytime fade, and the third to the nighttime fade.
The cycle adjustment allows for a variable duration from 30 seconds up to 5 minutes.
FRIAL ONE is available in three versions:
BASIC (the product you are currently viewing)
The control unit comes with a power supply, a 30-LED blue "PS" series LED strip (Code PSBL30), a 60-LED warm white "PS" series LED strip (Code PSBC60), and a fire LED—the essentials for nativity scene lighting.
MUSIC
In addition to the equipment included with the Basic version, the control unit also comes with an audio device featuring Christmas music and a dual socket for connecting it. The audio device has a power output of approximately 400 mW, sufficient for home use. The volume is adjustable.
STAR
In addition to the equipment included with the Music version, the control unit also comes with 30 MICROFO fiber-optic stars and a corresponding dual socket for connection.
Dimensions: 55 x 35 x 20 mm
For all versions, if the supplied equipment is not sufficient, it will be possible to connect additional strips and other accessories available in the catalog.
To connect additional strips or accessories, dual sockets (PRL2.5 - PRL2.1) or multiple sockets (PWM1 - PWM2 - PWM3) will be required.
TECHNICAL SPECIFICATIONS
Power supply
12 V DC 1 A 2.5 mm socket
Fixed blue output
12 V DC 1 A 2.5 mm socket
Day fade-out
12 V DC 1 A 2.5 mm socket
Night fade-out
12 V DC 200 mA 2.1 mm jack
Maximum load: 1 A
Cycle adjustment: from 30 seconds to 5 minutes
