FrialPower Standard FRISA - LED Nativity Scene Control Unit - Frisa

"FRIALPOWER" is an LED power control unit suitable for safely illuminating Nativity scenes with surprising results.
LED strips with over 200 LEDs and various accessories can be connected to the different outputs, for a total power of 20 W, sufficient to illuminate Nativity scenes up to approximately 6 square meters.

It has six DC sockets, three of which feature cross-fading, for creating the dawn, daytime, and sunset phases.
PS series high-power LED strips in suitable colors and LED accessories can be connected to them.

Two sockets are dedicated to nighttime. The first features fading. Accessories for nighttime effects can be connected to it, such as ART. 04005 for stars and ART. 04001 or ART. 04004 for the moon and comet.
The second nighttime socket controls the night lights. Accessories such as ART. 04007 for house lights can be connected to this socket.

The sixth socket remains on during all phases. A strip of blue LEDs can be connected here to create a spectacular lighting effect, useful in all phases. LEDs for fixed lighting of the Nativity scene can be connected in parallel with the LED strip.

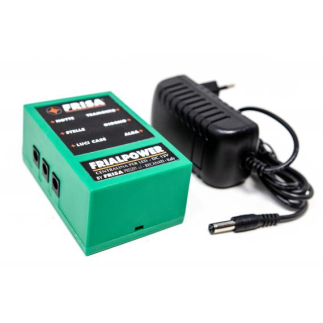

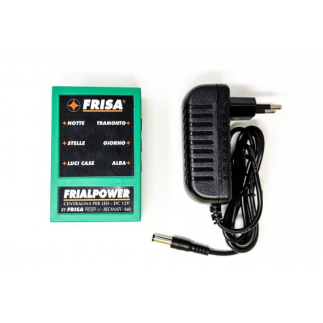

The control unit is equipped with an external power supply and one socket for each phase. An accessory can be connected to each socket.

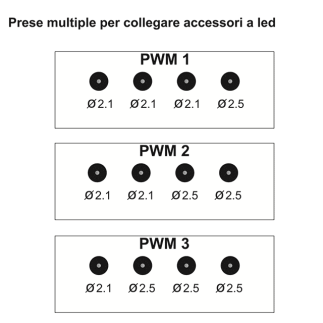

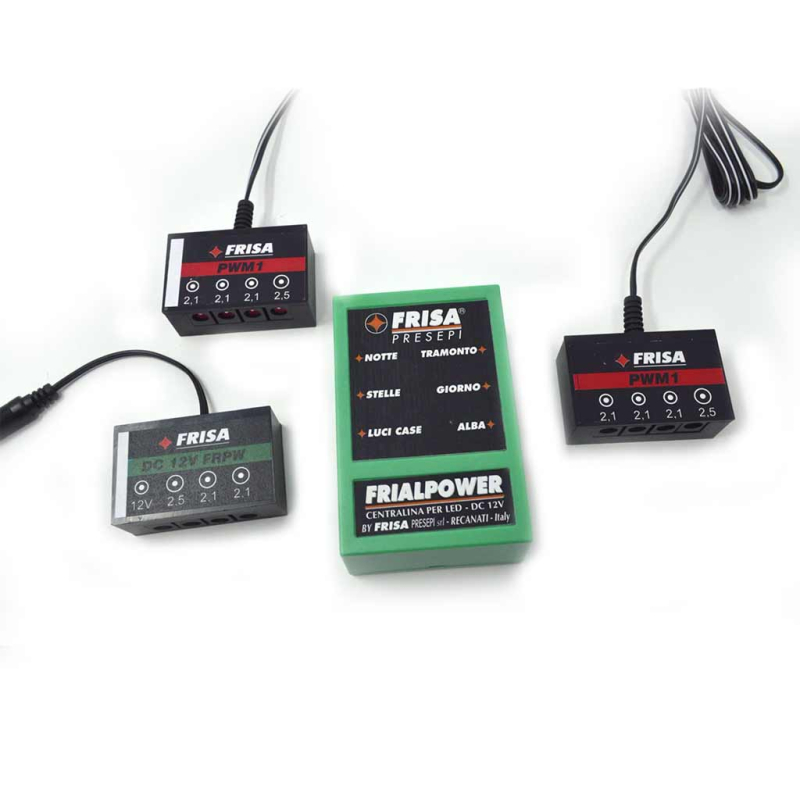

To connect multiple accessories to one socket, it is necessary to use multi-socket adapters, choosing from those listed below ("PWM1 (2 are included)" - "PWM2" - "PWM3").

TECHNICAL SPECIFICATIONS:
Power supply: 230 volts
Low-voltage outputs: 6
Total current: 2 A
Cycle duration: 2 min 30 sec
Socket diameter: 2.5 mm.
