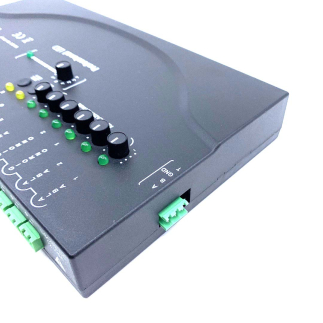

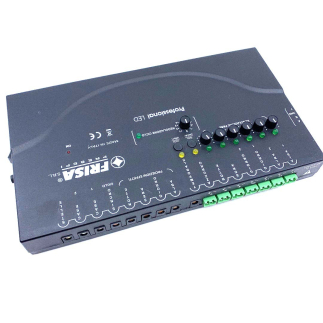

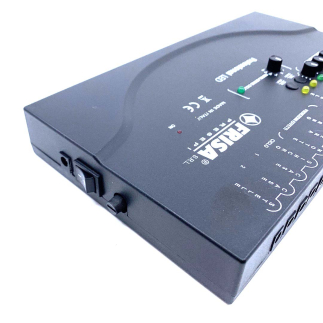

Professional LED FRISA

Finally, the new FRISA LED control unit, designed for all nativity scene enthusiasts who need more power for their displays.
This new 4-phase control unit (dawn / day / sunset / night) makes it possible to expand, virtually without limit, both the fades and the synchronized outputs.

Technical specifications:
External power supply 230 Vac / 12V - 10 A
Power outputs: DC 12V - 3 A (the terminal block is removable)
Projection outputs: DC 12V - 2 A sockets - ø 2.5 mm
Effects outputs: DC 12V - 2 A sockets - ø 2.5 mm
Storm output: DC 12V - 200 mA socket - ø 2.1 mm
Total power: 10 A - 120W
Phases and cycle are adjustable
Also included are 7 convenient screw terminals for connecting the 7 power outputs.

Overall, there are 16 outputs, divided as follows:
7 power fades;
4 fades dedicated to projections synchronized with the various phases;
2 house light outputs;
1 star output;
1 storm output (a SYL socket and an LT3 device must be added to simulate lightning/thunder);
1 output (covering the entire cycle) for connecting the sound player (RSCC), maintaining synchronization with the cycle.
This output makes it possible, for example, to manage narration throughout the entire cycle.

The Professional Led, even on its own, perfectly manages nativity scenes of 10/15 sq m and is comparable to a traditional control unit of approximately 600 W.
If greater power is needed, the nativity scene control unit can be expanded with two modules:
- PROLED/D, the Fade Module;
- SY8, the 8-output Sync Module.
Both modules naturally maintain phase synchronization, even in accelerated mode.

Even in the Professional Led without expansion, it is possible to manage a double dawn (for example, for even more realistic lighting effects) and a double day (for example, to provide more power and smoothness).

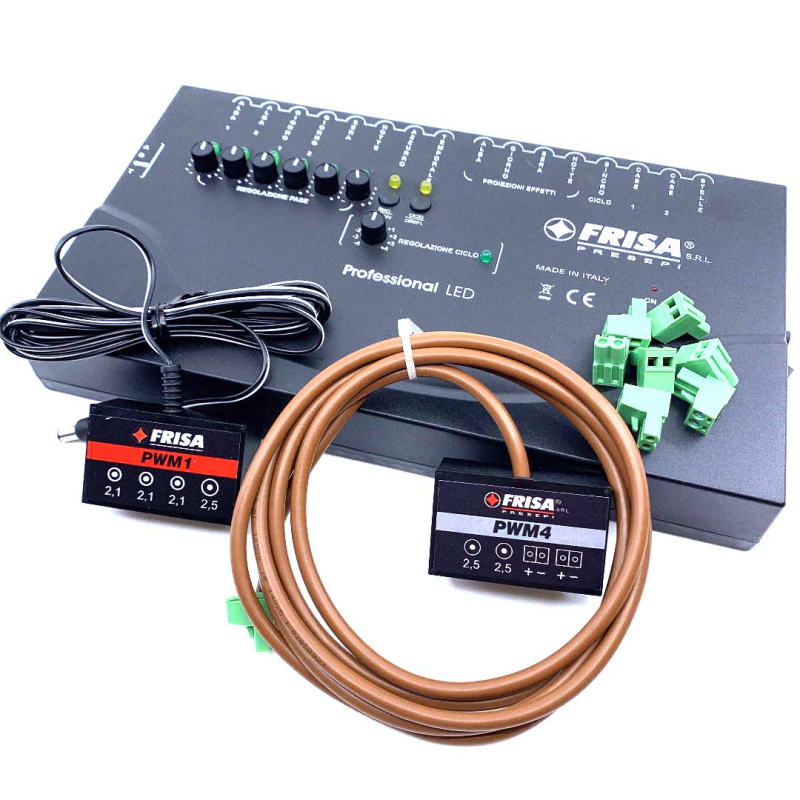

For the power outputs, 12V LED strips and LED lighting devices can be used. Seven convenient terminals are included for connection. Alternatively, special quick-connect extension cables can be purchased (with dual functionality as a socket and 2 m extension cable, Item code: PWM4).
